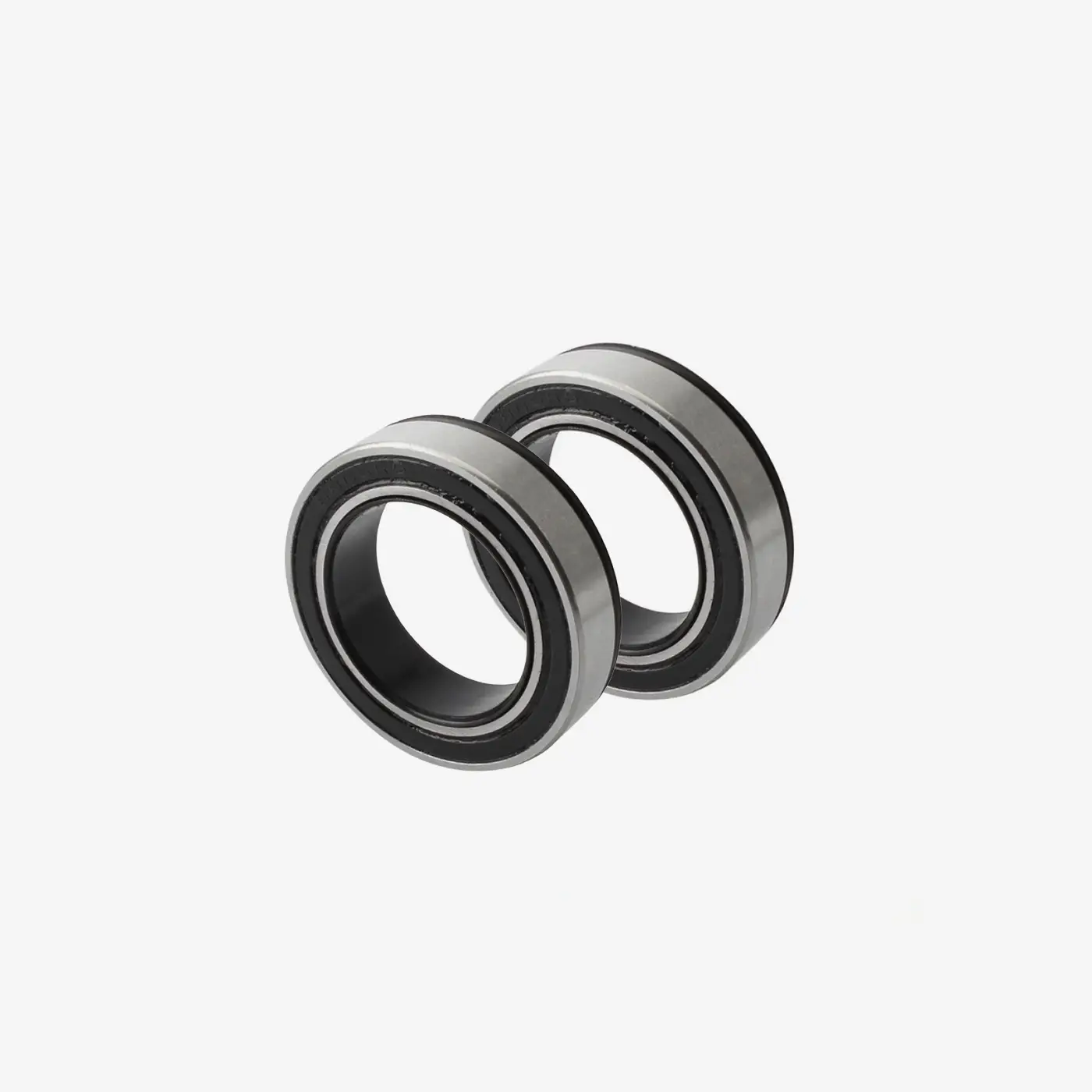

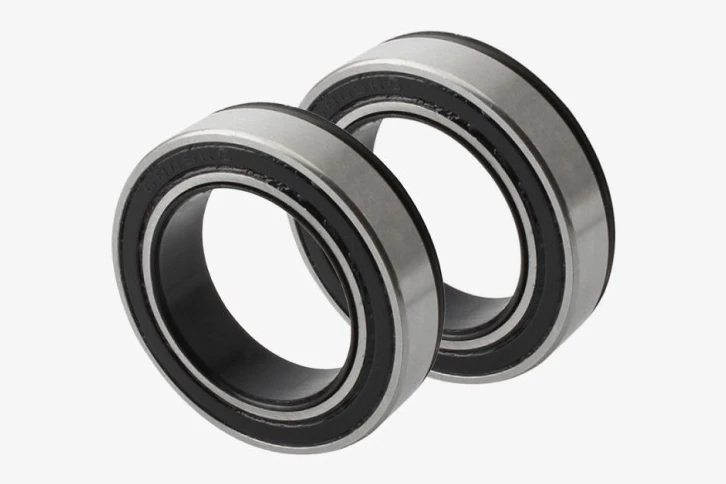

Booda Bike Eccentric bottom bracket – 2Bearing + 2Dust cover set in pair
This set holds the two bearings and two dust covers of the Booda Bike eccentric bottom bracket, one of each for the left and the right side: the parts you replace when the bottom bracket bearings are worn.
What is in the set
| Part | Qty |
|---|---|
| Bearing, 25 × 37 × 7 mm | 2 |
| Dust cover | 2 |
Why this set?
Made for the eccentric BB. The eccentric bottom bracket is where a Booda Bike sets its belt tension; these are its bearings and dust covers.
Known size. 25 × 37 × 7 mm: 25 mm bore, 37 mm outer diameter, 7 mm width.
Dust covers included. Each bearing has its own dust cover; after fitting, the dust cover sits level with the top of the eccentric.
A documented service job. Booda Bike publishes a step-by-step guide for changing these bearings, with the tools, the bearing adhesive and the 5 Nm limit on the cap bolts.
The bottom bracket they belong to

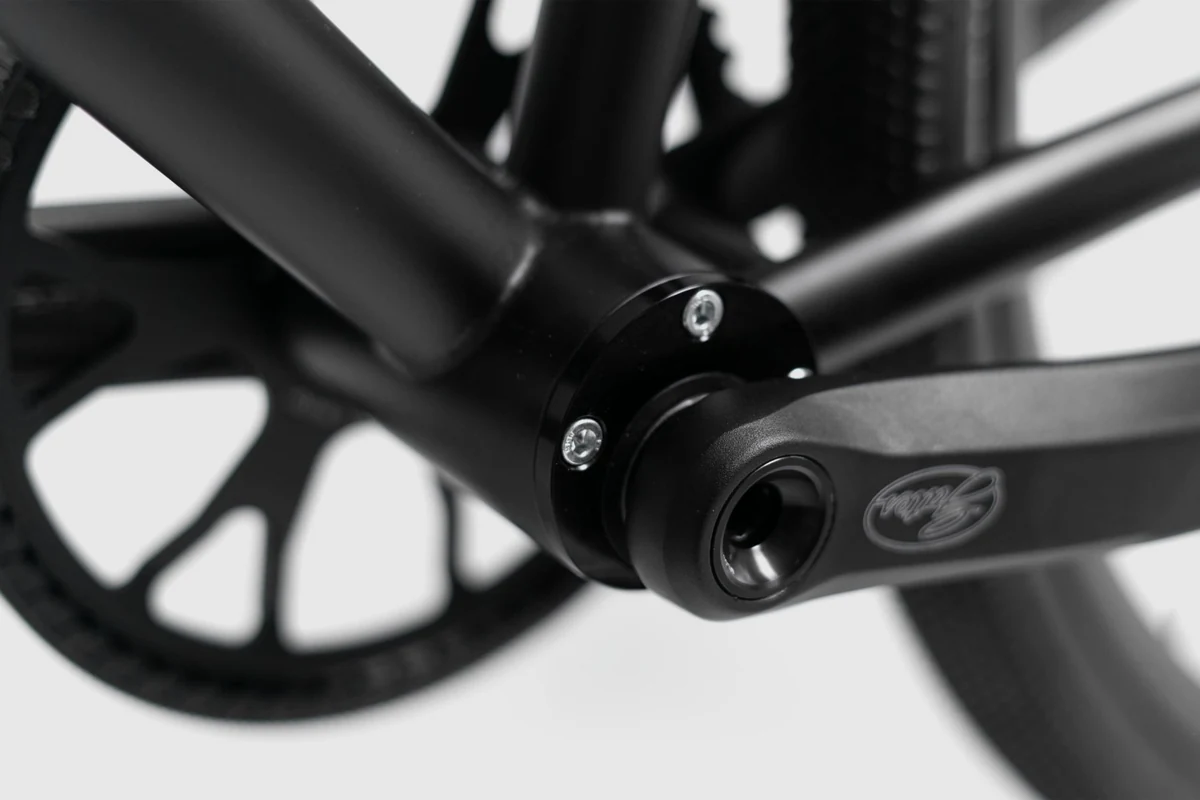

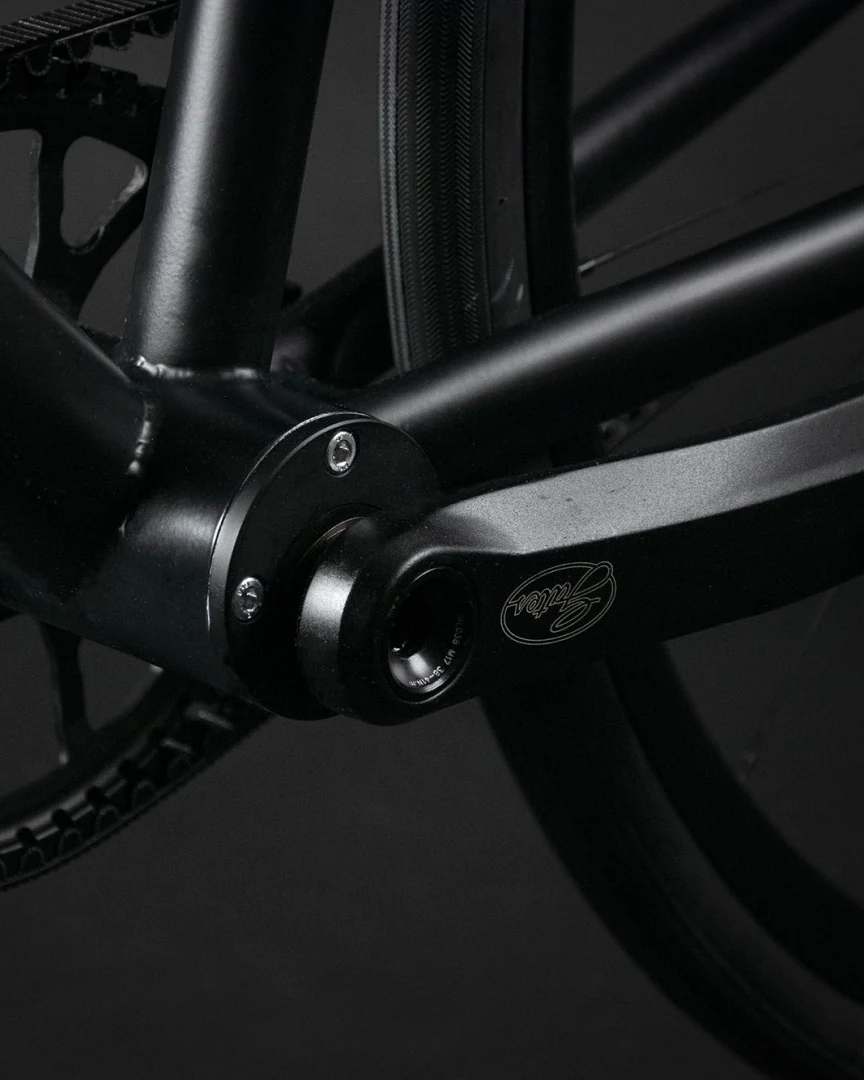

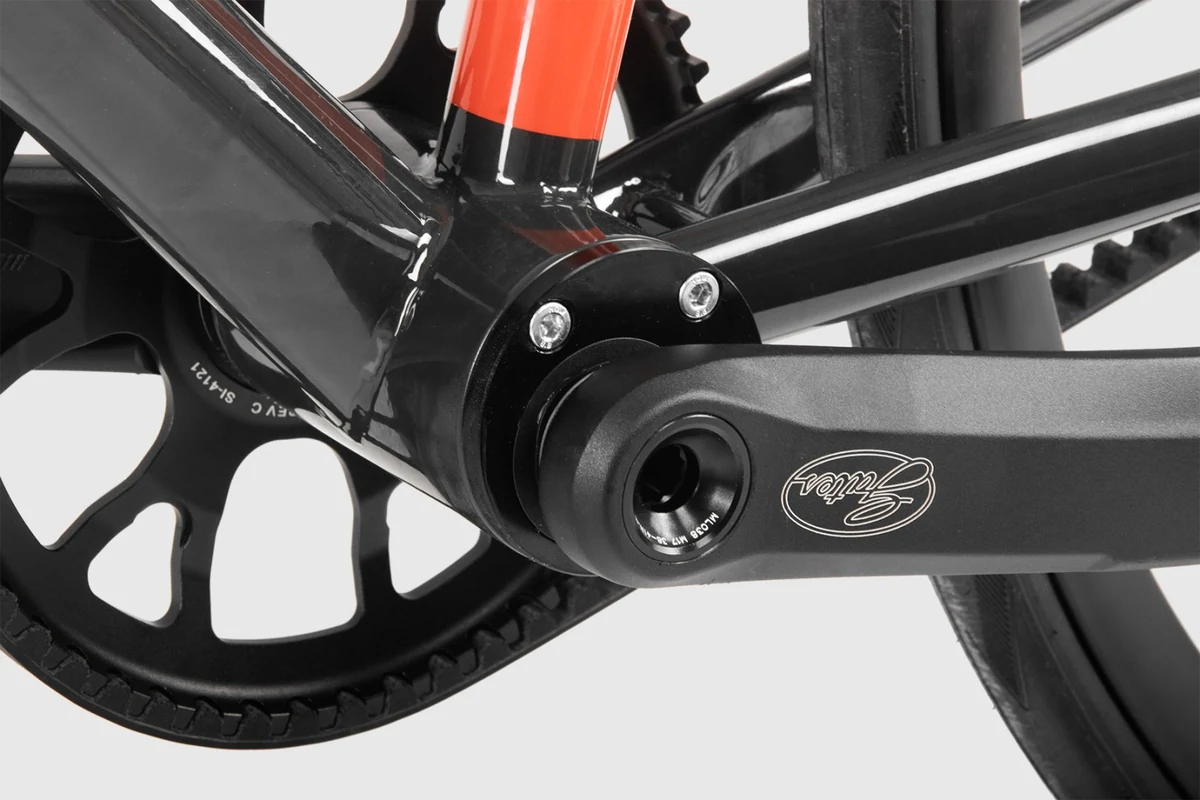

The eccentric bottom bracket carries the crank axle. Turning it moves the crank axle slightly forward or back, which changes the belt tension; the bearings sit inside its caps.
Fitting notes
- Mark the position of the non-drive-side cap against the frame before you open the bottom bracket, so the belt tension can return to where it was.
- You will need a 15 mm wrench, a 10 mm and a 4 mm Allen key, a torque wrench, a hammer, a straight wooden plank and bearing adhesive.
- Apply bearing adhesive to the inner surface of both caps, push the dust covers into the new bearings and tap each bearing home with the plank until it is fully seated and the dust cover is level with the top of the eccentric.
- Tighten the three cap bolts to a maximum of 5 Nm, then check the belt tension and the belt line.
- This is advanced service work. If you are not equipped for every step, have a workshop do it.
Who is it for?
- Booda Bike owners. Whose eccentric bottom bracket bearings are worn or damaged.
- Workshops. Who service Booda Bike frames and need the bearing and dust cover pair as a ready set.
Specifications
| Product | Eccentric bottom bracket bearing and dust cover set |
|---|---|
| Contents | 2 bearings and 2 dust covers (left and right) |
| Bearing size | 25 × 37 × 7 mm (bore × outer diameter × width) |
| For | Eccentric bottom bracket of Booda Bike frames |
| Cap bolts | Maximum 5 Nm |
Frequently asked questions
What size are the Booda Bike eccentric bottom bracket bearings?

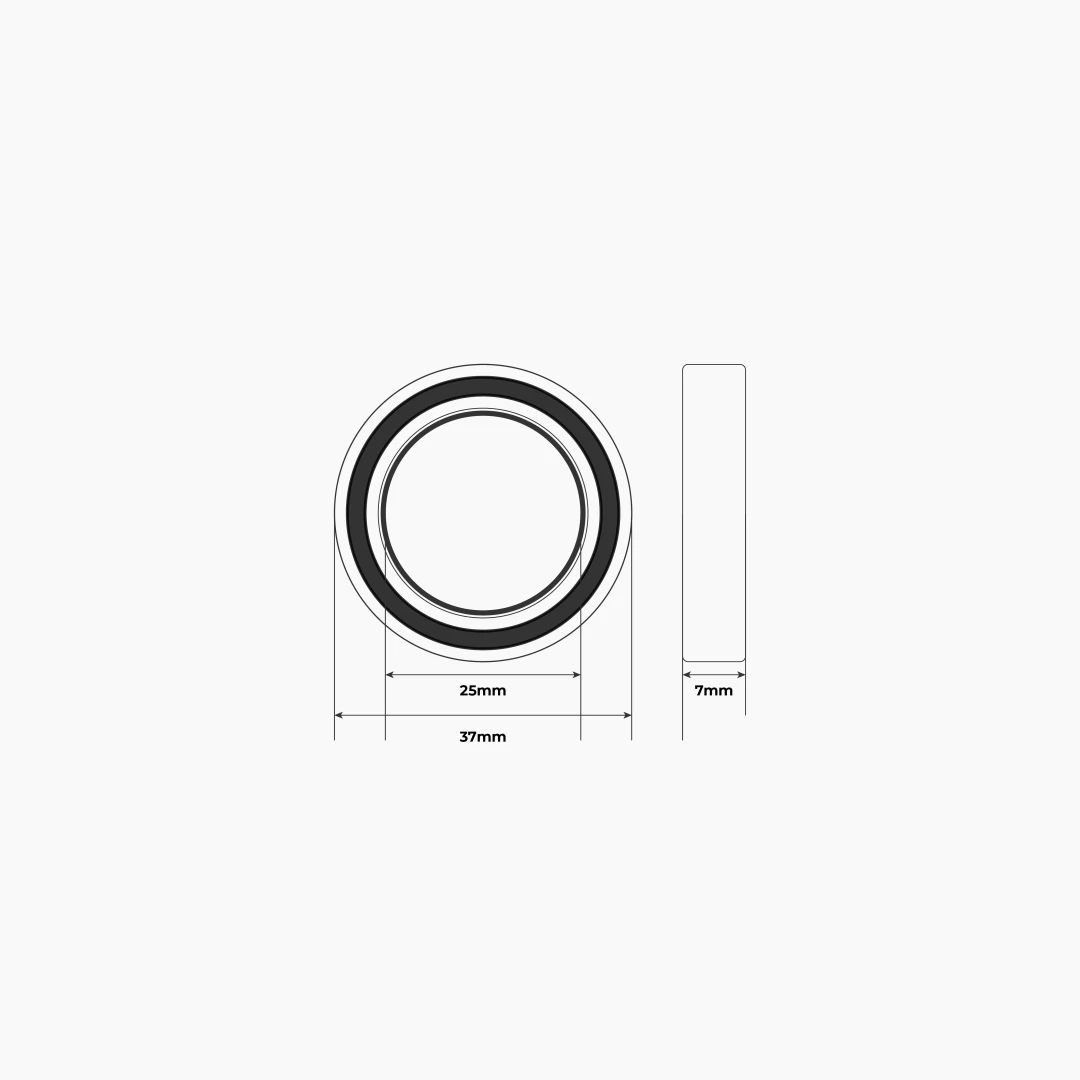

25 × 37 × 7 mm, as the dimension drawing in the product gallery shows. The set contains two.
What is in the set?
Two bearings and two dust covers, one of each for the left and the right side of the eccentric bottom bracket.
When should I replace the bearings?
When they are worn or damaged. Booda Bike's guide says damaged bearings must not be reused, and that you should stop and contact them if the caps, bearing seats, dust covers or crank axle are damaged.
Do I need the complete eccentric bottom bracket?
Not if only the bearings and dust covers are worn: this set is enough. The complete Possible eccentric bottom bracket kit is a separate product.
About Booda Bike
Booda Bike builds belt-driven bicycles around steel frames, with Gates Carbon Drive belts and gear hub or single-speed drivetrains. The range includes the Banker, Hiker, Alpine, Atlas, Pulse and Sander models.
The components are standardised so that Booda Bike bicycles can be serviced at ordinary workshops, and parts like this one are also sold separately in the Booda Bike webshop.
