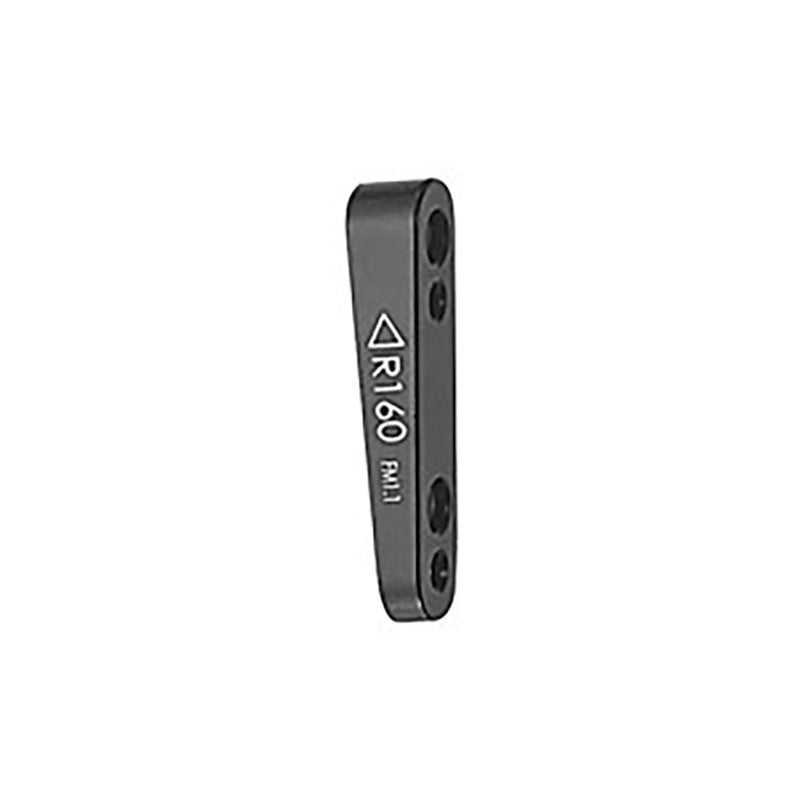

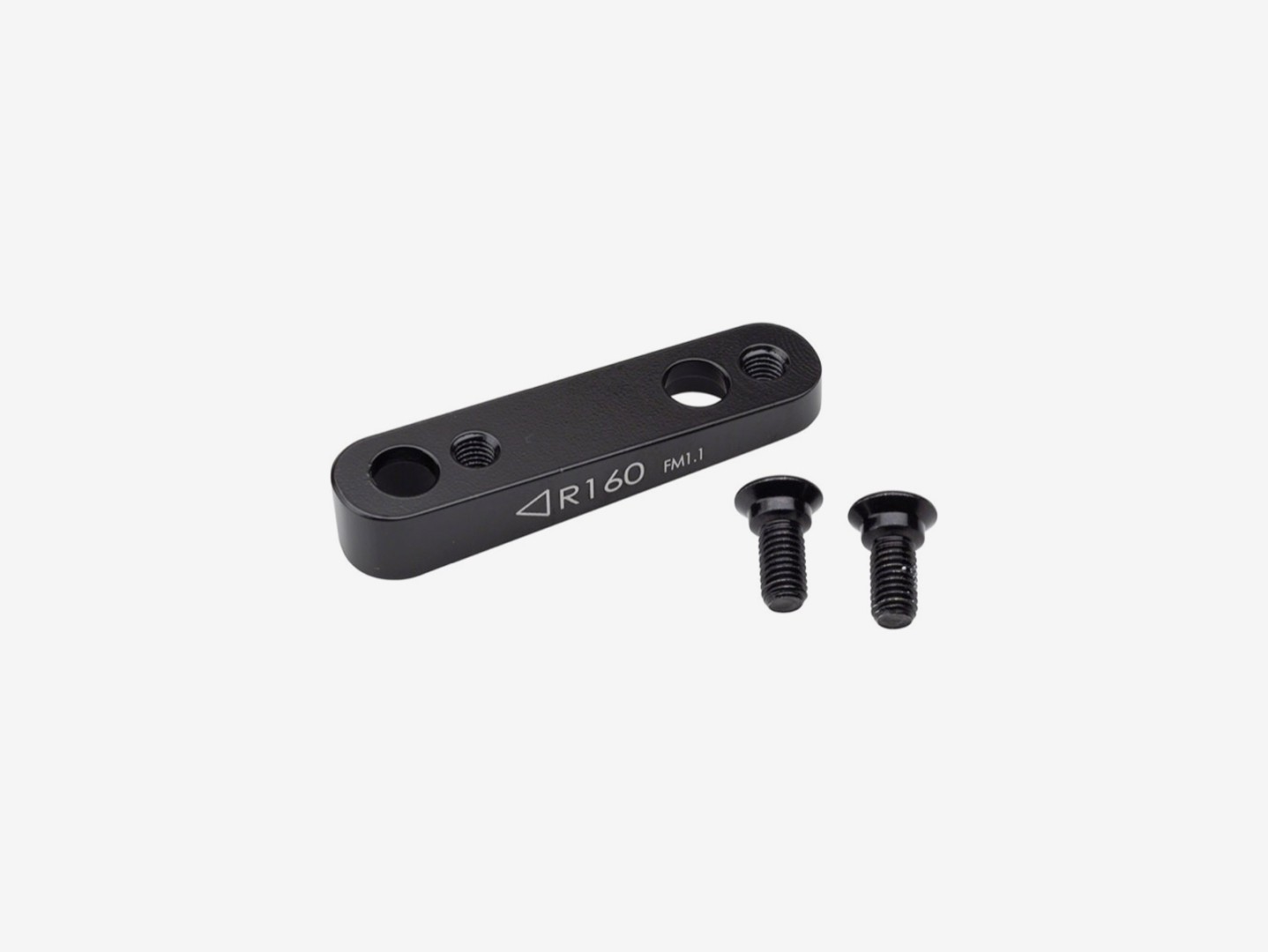

Tektro Flat Mount Brake Adapter – Rear 160 mm
The Tektro Flat Mount Brake Adapter – Rear 160 mm (FM1.1 R160) lets you run a 160 mm rear rotor with a flat-mount caliper on a flat-mount frame – more braking leverage than 140 mm, without changing the frame.
Why the Tektro FM1.1 R160 adapter?
Simple rotor upgrade. Moves a flat-mount rear brake from a 140 mm to a 160 mm rotor without changing the frame.
More braking leverage. A 160 mm rotor gives more leverage and more rotor area than 140 mm.
Keeps the flat-mount look. Compact and close to the chainstay.
Proven pairing. The same adapter type comes with our Tektro MD-C550 rear caliper.
What it is for
Upgrading the rear brake from a 140 mm to a 160 mm rotor on a flat-mount frame, replacing a lost or damaged rear 160 mm adapter, or building a flat-mount rear brake with a 160 mm rotor from separate parts.
How it fits
1 – flat mount on the frame, 2 – adapter, 3 – caliper, 4 – rotor.
The rear adapter lifts the caliper so that the pads meet a 160 mm rotor.
Who is it for?
- My rear brake fades on long descents with luggage. A 160 mm rotor gives more leverage and more rotor area than 140 mm.
- I want the same rotor size front and rear. Combine this adapter with a 160 mm front setup to run 160 mm on both wheels.
- I've lost the adapter during a frame swap. Replace just the adapter.
Compatibility
| Position | Rear |
|---|---|
| Mount | Flat-mount frame to flat-mount caliper |
| Rotor size | 160 mm |
| Bolts | Not included. The adapter adds height to the mount, so the caliper needs longer flat-mount bolts than without an adapter. TRP states that the rear 160 mm adapter needs two additional flat-mount bolts, chosen by length for your frame. We sell M5 flat-mount caliper bolts separately. |
Frequently asked questions
Do I need different bolts with the Tektro FM1.1 R160 adapter?
Yes. The caliper bolts pass through the frame mount and the adapter, so they must be longer than for a caliper mounted directly on the frame. Measure the frame mount and choose the length from the frame or brake maker's bolt chart.
Can I use it with a 140 mm rotor?
No. For a 140 mm rear rotor, the flat-mount caliper is usually fitted directly to the frame without this adapter.
Will my brake need adjusting afterwards?
Yes. After fitting the adapter and new rotor, centre the caliper over the rotor and check the pad clearance.
About Tektro
Founded in 1986 in Changhua, Taiwan, Tektro makes brakes and brake parts for bicycle manufacturers and the aftermarket. In 2006 Tektro founded its high-end brand TRP (Tektro Racing Products). Both Tektro and TRP list flat-mount adapters for their disc brakes.
