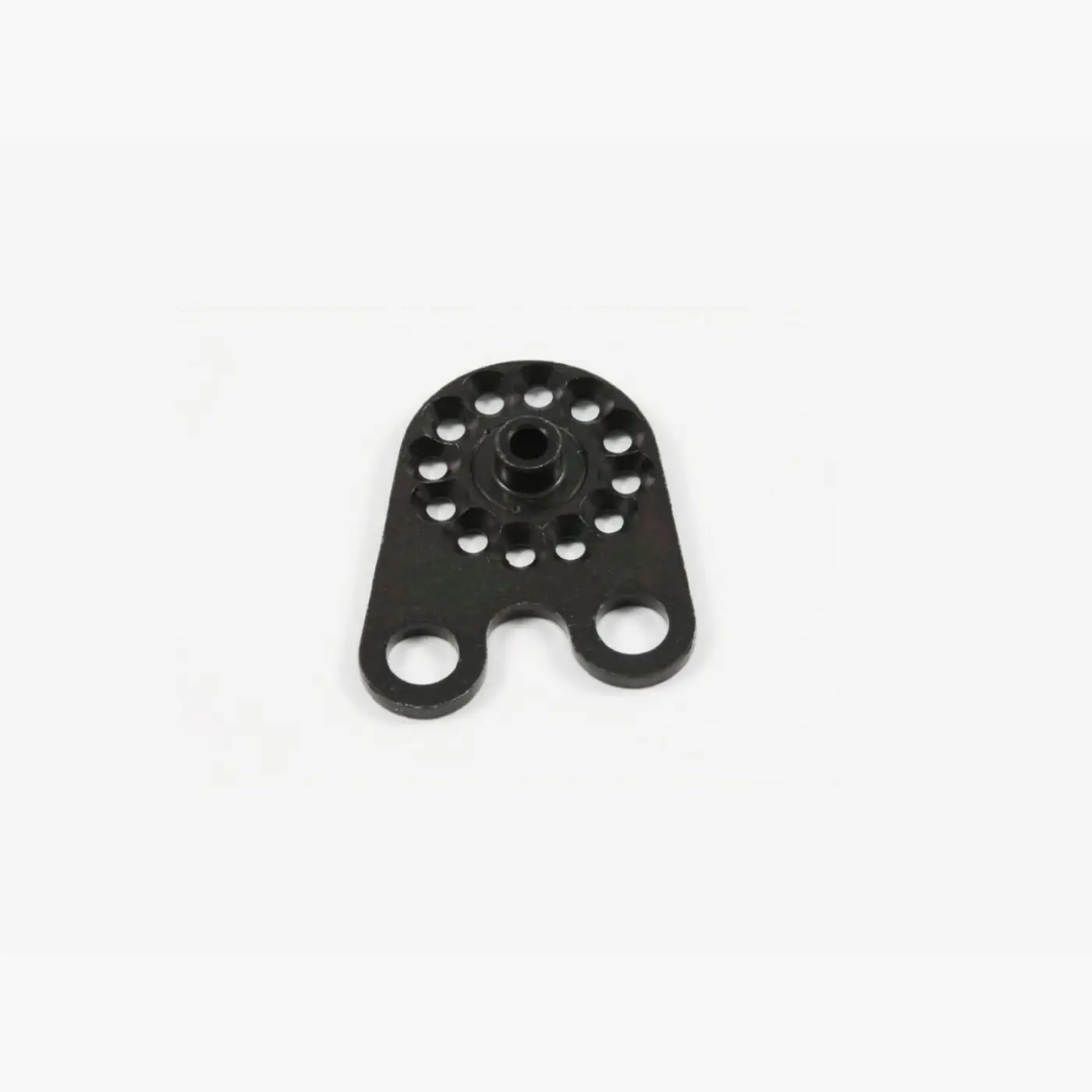

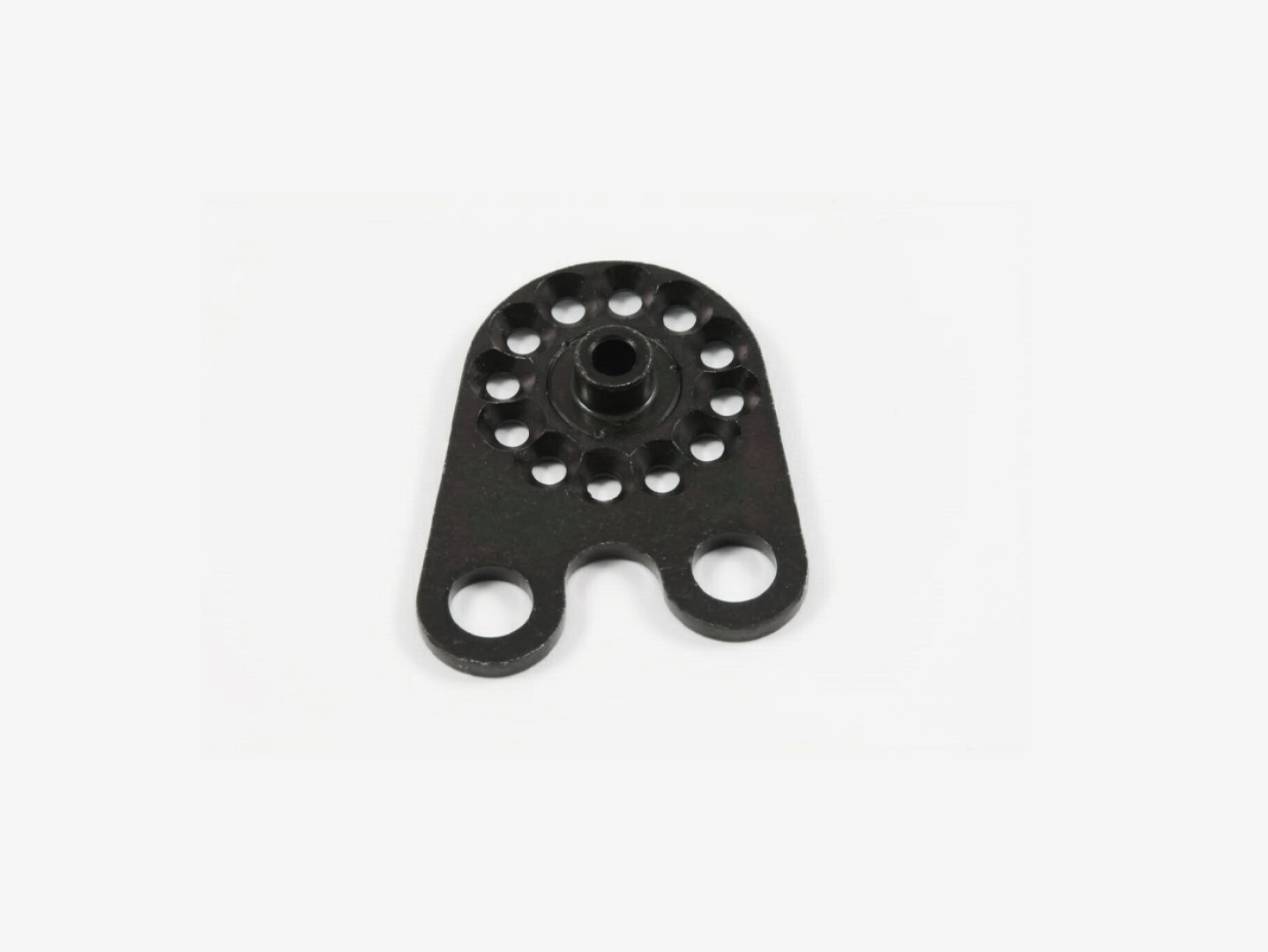

Rohloff Axleplate CC
The Rohloff Axleplate CC (8232) is the standard axle plate for quick-release Speedhub 500/14 CC hubs, used with the long torque arm to hold the hub torque on frames without special dropouts.
Why the standard CC plate?
Fits almost any frame. With the torque arm it works on frames without OEM dropouts or a suitable brake mount.
Torque arm mounting. The torque arm bolts behind the plate with M8x0.75 bolts at 7 Nm.
Factory standard. Supplied with Speedhub versions without OEM or OEM2 codes.
How it works
The plate is screwed to the hub; the long torque arm is attached behind it and its narrow end is fixed to the chainstay with a clamp or quick-release block.
Who is it for?
- Owners of CC Speedhubs with a torque arm. Replace a damaged plate or convert back from OEM/PM.
- Classic steel touring frames. The universal solution when the frame has no special dropout.
Compatibility
| Rohloff part no. | 8232 |
|---|---|
| Hub | Speedhub 500/14 CC (quick-release axle) |
| Anchoring | Long torque arm (8230) with locating fork |
| Plate screws | TX20, 3 Nm |
| Torque arm bolts | M8x0.75, 7 Nm |
Frequently asked questions
Is the torque arm included?
No, only the axle plate. The torque arm is a separate part.
CC or TS – which do I have?
CC hubs have a hollow quick-release axle, TS hubs a threaded M10x1 axle with nuts.
About Rohloff
Rohloff AG is a German manufacturer from the Kassel area, best known for the Speedhub 500/14 – a sealed 14-speed gear hub with evenly spaced gears. Rohloff sells every spare part as an individual item, so a Speedhub can be serviced and adapted to a new frame instead of being replaced.
BoodaBike (Massive Bikes, Budapest) is an official Rohloff service centre, trained by Rohloff, and an official European distributor of Rohloff hubs and parts. We build Speedhub bikes with Gates belt drive ourselves – if you are unsure which part fits your hub or frame, ask us before ordering.
