Booda Bike Astro - S




















Astro
Single-speed commuter bike
The Booda Bike Astro is a low-maintenance, single-speed, belt-driven commuter bike: with one gear there is no derailleur or shifter to adjust, and the Gates CDX carbon belt needs no lubrication. It combines a steel frame, a carbon fork, a drop handlebar, hydraulic disc brakes and 28 mm Schwalbe Pro-One tubeless tires for fast, agile riding on asphalt, in sizes S, M and L.
Designed for performance
A single-speed, belt-driven bike for those who love fast-paced cycling and want an agile ride. Thanks to the road wheels, its performance is best used on asphalt. The frame geometry and the components are matched with a focus on performance. The Gates CDX carbon drive system provides efficient, low-maintenance riding. The steel frame is flexible enough to absorb uncomfortable vibrations, yet stiff enough not to degrade the riding experience.

Steel frame. The frame is the most important element of the bike, so it receives special attention in the design. Thanks to the material properties of steel, it pleasantly dampens vibrations, yet gives enough rigidity to make cornering a real experience.
Single speed. One gear and no shifting: the bike is equipped with the Possible SpinnerOne straight-pull 24-hole wheelset, designed specifically for belt-driven bikes. The lightweight rear hub produces a distinctive, satisfying buzz.
About 9 kg. The bike weighs approximately 9 kilograms without accessories, which is low for a steel-framed, single-speed bike of this type. This is thanks to the high-quality steel frame and the carbon fork. Low weight contributes to a comfortable and enjoyable ride.
Hydraulic disc brakes. The hydraulic disc brake system is one of the lowest-maintenance braking solutions. It offers high efficiency at an affordable price and can be upgraded to a higher-end braking system if desired.
Gates Carbon Drive system. The Gates Carbon Drive belt system is clean, quiet and virtually maintenance-free. It requires no lubrication, does not rust and lasts significantly longer than a traditional chain. A premium choice for smooth, reliable riding.
Internal cable routing. Every detail of the bike was carefully designed to keep it clean and good-looking, which is why internal cable routing is standard.

Possible SpinnerOne straight-pull wheelset (24-hole)
Straight-pull front and rear hubs, suited to the Gates rear sprocket on the Rohloff belt line used on single-speed bikes.

Power-tuned riding position
The frame geometry of the single-speed bikes is tuned for performance, so you can get through the city’s obstacles as agilely as possible.

Gates CDX carbon belt drive
The Gates CDX belt drive is a durable system that delivers high performance and reliability with low maintenance.

Hydraulic disc brakes
Equipped with hydraulic disc brakes for reliable safety. Whether it's emergency braking or descending a slope, you can count on maximum stopping power. We really like TRP brakes: they are highly effective and extremely reliable.

High puncture resistance, tubeless sealant
Tubeless tires come with Effetto Mariposa Végétalex sealant, which immediately seals smaller punctures from inside the tire (Schwalbe Pro-One 622x28 tires).
Who is the Booda Bike Astro for?
- City commuters. One gear, a belt that needs no lubrication and hydraulic disc brakes keep maintenance low for daily rides.
- Riders who like fast, agile riding. Performance-tuned geometry, road wheels with 28 mm tires and a drop handlebar.
- Anyone who prefers simplicity. No gears to adjust and no chain to oil.
Booda Bike Astro at a glance
| Type | Single-speed, belt-driven commuter bike |
|---|---|
| Frame and fork | Steel frame (Booda Bike Singlespeed Frame); Possible SS small carbon fork |
| Gearing | Single speed, no derailleur |
| Drive | Gates CDX carbon belt (113T) with 55T front and 20T rear sprocket (ratio 2.75:1); FSA Direct Mount crankset |
| Brakes | TRP Hylex hydraulic disc brake set, 140 mm rotors |
| Wheels and tires | Possible SpinnerOne 24-hole straight-pull wheelset, aluminium rims (622); Schwalbe Pro-One 622x28, tubeless with Effetto Mariposa Végétalex sealant |
| Handlebar | Possible aluminium Road 31.8 drop handlebar, Possible 90 mm stem |
| Cables | Internal cable routing |
Choose the right size for your height

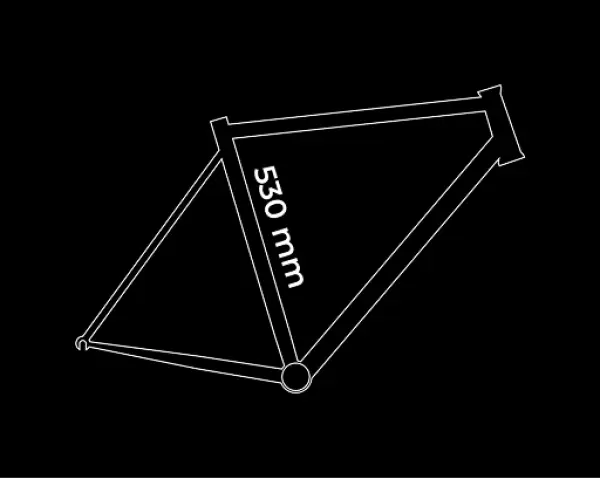

Frame size S. Height: 155–170 cm
Stack: 521 mm
Reach: 374 mm

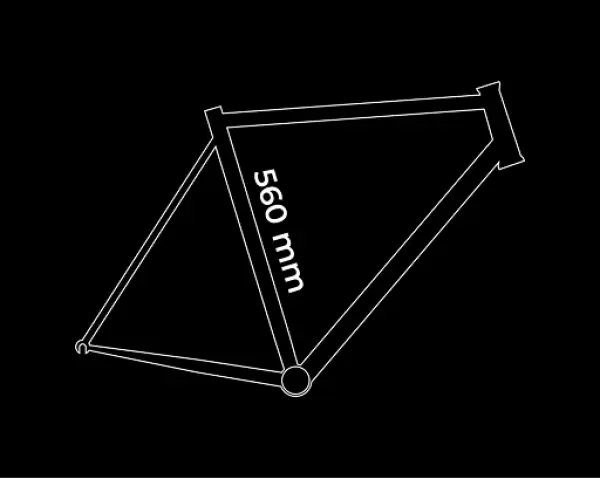

Frame size M. Height: 170–185 cm
Stack: 544 mm
Reach: 378 mm
Frame size L. Height: 185–200 cm
Stack: 562 mm
Reach: 387 mm
Frame geometry

| Frame size | S | M | L |
|---|---|---|---|
| A – Seat tube size (mm) | 530 | 560 | 590 |
| B – Top tube, horizontal (mm) | 530 | 540 | 560 |
| C – Head tube (mm) | 130 | 150 | 170 |
| D – Chainstay (mm) | 412 | 412 | 412 |
| E – Head tube angle (°) | 73 | 73 | 73 |
| F – Seat tube angle (°) | 73.5 | 73.5 | 73 |
| G – Wheelbase (mm) | 960 | 971 | 986 |
| H – Standover height (mm) | 779 | 803 | 824 |
| I – Headset | 1.5" – 1 1/8" | 1.5" – 1 1/8" | 1.5" – 1 1/8" |
| J – Seatpost diameter (mm) | 27.2 | 27.2 | 27.2 |
Frequently asked questions
Is the Booda Bike Astro a low-maintenance bike?
Yes, it is built for low maintenance. It has a single gear, so there is no derailleur, shifter or gear cable to adjust, and the Gates CDX carbon belt needs no lubrication and does not rust. The Astro also has hydraulic disc brakes, tubeless tires with sealant and standard components that any general bike shop can service. Wear items such as brake pads, tires and the belt still need regular checks, as on any bike.
What makes the Booda Bike Astro durable?
Its main components are chosen for a long service life: a steel frame that absorbs vibrations, a carbon fork, a Gates CDX carbon belt that does not rust and lasts significantly longer than a traditional chain, TRP Hylex hydraulic disc brakes, and a Possible SpinnerOne straight-pull wheelset designed for belt-driven bikes. The Schwalbe Pro-One tires run tubeless with sealant to close small punctures.
What drivetrain does the Booda Bike Astro use?
The Astro has a single-speed Gates CDX carbon belt drive: a 55T front sprocket and a 20T rear sprocket (a ratio of 2.75:1) with a 113T belt, on an FSA Direct Mount crankset. The belt is clean, quiet, needs no lubrication and does not rust.
Is the Booda Bike Astro a good commuter bike?
Yes, it is designed as a fast, agile commuter bike for asphalt: road wheels with 28 mm tires, a frame geometry tuned for performance, about 9 kg without accessories, and sizes S, M and L. With a single gear it suits riders who prefer simplicity; if you want a wide gear range, look at our hub-geared models such as the Booda Bike Pulse with a Rohloff Speedhub.
Does the Booda Bike Astro have a drop handlebar?
Yes. The Astro has a drop (road) handlebar, a Possible aluminium Road 31.8, together with a Possible 90 mm stem.
How can I pay?
You can pay via bank transfer or credit card.
Is there any financing option available?
Not yet, but we’re working on it! :)
What if I don’t like my bike?
If the bike isn’t what you expected, you can return it within 14 days. Please make sure to pack it carefully so it arrives back to us in good condition. You can find the return conditions in our Terms and Conditions.
How can I service my bike?
All our bikes are made using standard components, so they’re easy to maintain. This is a core principle across all our models. Thanks to this, any general bike shop should be able to service your Booda Bike.
What tools do I need to assemble my Booda Bike?
This depends on the model and configuration, but most maintenance and assembly can be done with these tools: 4 mm Allen key, 5 mm Allen key, 6 mm Allen key, and a T25 Torx key.
Do the prices include VAT?
Once you select your country, all prices will be shown with the applicable local VAT included.
Can I try the bike in person before buying?
Currently, we operate as an online-only store, but we’re working on making test rides possible in the near future.
What happens after I place my order?
Once we receive your order, we begin processing it. If all parts are in stock, our team will prepare the components in the order in which the orders were received. If something is out of stock, we’ll check the expected arrival or order it immediately. After that, your bike enters the assembly phase, which usually takes 1–2 business days. Once the bike is built, it undergoes a thorough quality check to ensure everything is assembled correctly. Then it gets packed and shipped straight to your door.
How can I order spare parts?
If you bought your bike through our website, just go to the “My Bicycle” tab in your profile — there you’ll find all components specific to your bike, so you’ll know exactly what you need and can easily reorder.
What if I want a customization that’s not available on the website?
The customization options on our website are based on what we've learned actually make sense over the years. There are very few modifications we are both able and willing to make that aren’t listed online — but feel free to email us at info@boodabike.com and we’ll be happy to discuss it.
What it includes
| Booda Bike Single Speed Frame Black - S | 1 pcs |
| Booda Bike Cable protecting foam | 1 pcs |
| Booda Bike Cable manager plastic | 1 pcs |
| Booda Bike Rear Thru Axle – 142/12 mm | 1 pcs |
| Booda Bike Seat Clamp | 1 pcs |
| Booda Bike Alu Seat Post – 27.2 mm | 1 pcs |
| Booda Bike HighLiner Saddle | 1 pcs |
| Booda Bike front thru axle – 100/12 | 1 pcs |
| Booda Bike Alu Handlebar – Road - 400 mm | 1 pcs |
| Booda Bike Stem 90/7 – 31.8 mm | 1 pcs |
| Tektro TR-35 Centerlock Disc Rotor 1.8 mm - 140 mm | 2 pcs |
| Possible Centerlock Lockring | 2 pcs |
| Possible SpinnerOne – Front Hub 24H StraightPull 100x12, CenterLock | 1 pcs |
| Possible Aluminium Rim 622 – 24 holes | 2 pcs |
| Possible SpinnerOne – Rear Hub 24H StraightPull 142×12, CenterLock | 1 pcs |
| Sapim Sprint Straight Pull Spoke – Black, 295 mm | 48 pcs |
| Sapim Polyax Brass Nipple 14G 12 mm – Black | 48 pcs |
| Possible tubeless tape | 2 pcs |
| Possible Tubeless Valve - 40 mm | 2 pcs |
| Possible Tubeless Valve washer | 2 pcs |
| Effetto MariposaVégétalex 80 ml | 2 pcs |
| Schwalbe Pro One 622×28 – Tubeless easy | 2 pcs |
| FSA Comet Crank Arm Set – 170 mm, MegaExo 24 mm, Direct Mount | 1 pcs |
| Crankset spacer | 1 pcs |
| FSA MegaExo Crank Bolt – Left Arm, 24 mm Alloy Cranks | 1 pcs |
| FSA MegaExo Wave Spring Washer – 24 mm | 1 pcs |
| FSA MegaExo Plastic Crank Spacer – 24 mm | 1 pcs |
| Gates CDX Belt Black/Black -113T | 1 pcs |
| Booda Bike Flat Pedal – Plastic | 1 pcs |
| Gates CDX Rear Sprocket 9-Spline Shimano Casette - 20t | 1 pcs |
| Booda Bike Carbon Fork – Trekking, Without light cable channel | 1 pcs |
| Booda Bike Multibender Drop Handelabar Tape | 1 pcs |
| TRP Hylex HD-C8110 Hydraulic Disc Brake Set – Front and Rear | 1 pcs |
| Gates Direct Mount Front Sprocket - Rohloff beltline - 55T | 1 pcs |
| Booda Bike headset aluminium spacer – 1 1/8", 28.6 mm | 2 pcs |
| Booda Bike headset for Tapered fork | 1 pcs |
| Booda Bike Eccentric BB | 1 pcs |
