TRP Hywave HD-S8130E Hydraulic Brake-Shift Set – Front and Rear
The TRP Hywave HD-S8130E set is a complete pair of hydraulic brake levers with flat-mount calipers for drop-bar bikes with electronic gear-hub shifting: the right Hywave lever with the shift button and the rear caliper, the left lever with the front caliper, and the front flat-mount adapter. Brake and change gear without moving your hand.
Why the TRP Hywave set?
Shift button in the brake lever. TRP designed the Hywave to shift systems such as Bosch or 3X3: ride the hoods, brake and change gear in one place.
Wireless with 3X3. 3X3 states that the Hywave levers communicate with the 3X3 shift actuator via Bluetooth, so there is no shift cable to route.
Everything for both wheels. Two levers and two calipers: the right lever works the rear brake, the left lever the front brake. The left side is the same lever and front caliper as in the TRP Hywire set.
Flat-mount calipers. The modern road and gravel standard, compact and clean on the frame.
5 mm hose and mineral oil. TRP's current hydraulic system for its drop-bar levers.
Front adapter included. The set contains the front flat-mount adapter. A rear adapter is not part of the set.

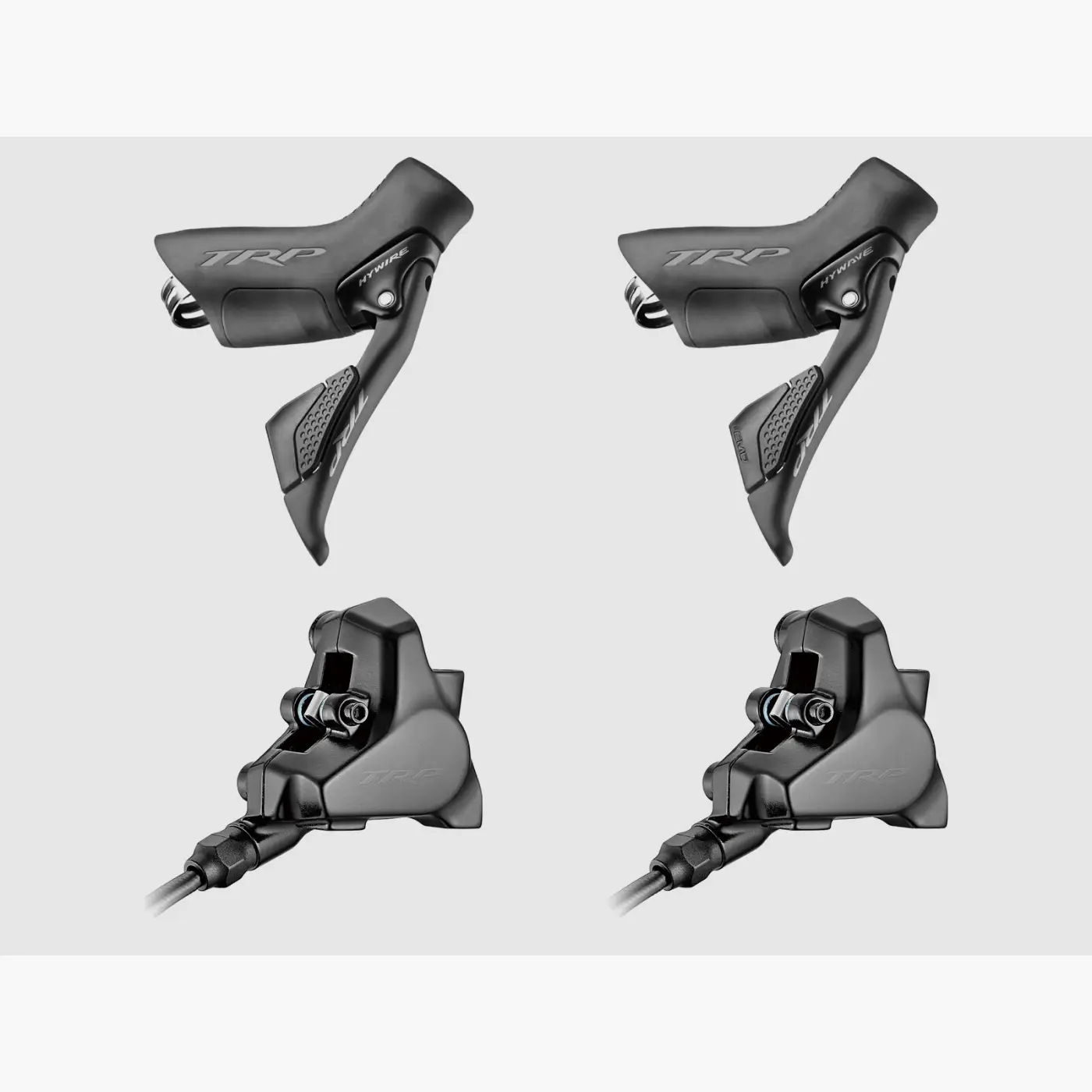

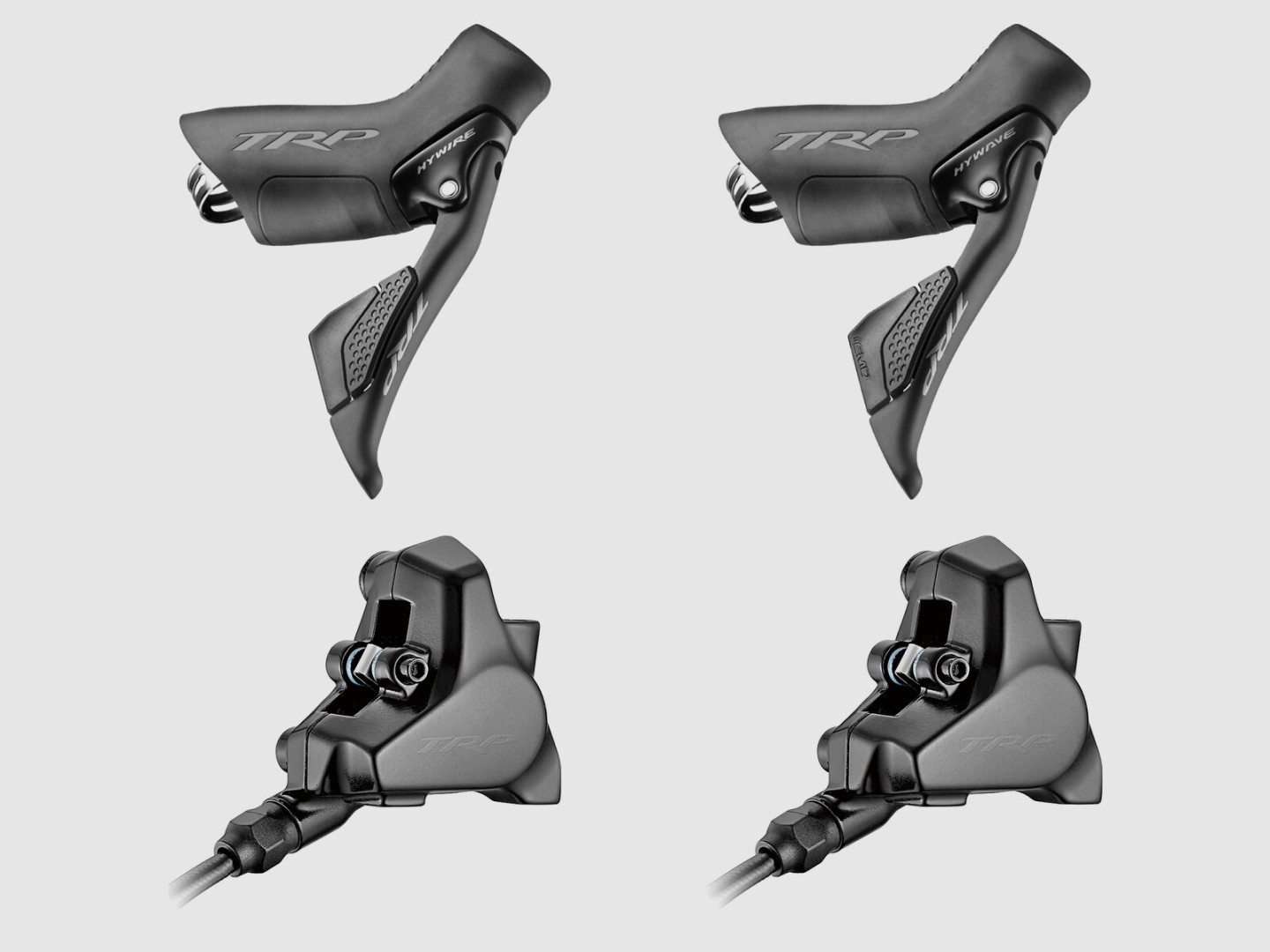

What is in the set
- TRP Hywave HD-S8130E right brake-shift lever with the rear flat-mount caliper.
- Left brake lever with the front flat-mount caliper (as in the TRP Hywire set).
- Front flat-mount adapter.
Electronic gear-hub shifting on drop bars
Electronic gear hub shifting used to mean a flat bar. The Hywave puts the shift button on a drop-bar brake lever. TRP lists it for endurance road, gravel and XC use. With the 3X3 NINE gear hub it works together with the TRP SW-C8020E bar-end unit; with Bosch electronic shifting, with the TRP SW-C8010E bar-end unit. On BoodaBike bikes we use the Hywave with the 3X3 NINE gear hub and our own electronic shifting setup, powered by a compact power bank, without an e-bike motor or Bosch drive.
Who is it for?
- Gear-hub fans who prefer drop bars. With the SW-C8020E bar-end unit, the Hywave shifts the 3X3 NINE hub from the brake lever.
- Riders who do not want to take a hand off the bar to shift. The shift button sits within reach of your fingers on the hoods.
- Builders of a new bike. Everything for the brakes and the shift button in one order.
- Riders replacing both brakes. A matched left and right pair.
Compatibility
| Model | TRP Hywave HD-S8130E (flat mount) |
|---|---|
| Set | Right lever with shift button and rear caliper, left lever with front caliper |
| Handlebar | Drop bar |
| Caliper mount | Flat mount |
| Rotor | 1.8 mm thick rotors (not included) |
| Hose | 5 mm; the rear hose is 1600 mm in our supply |
| Brake fluid | Mineral oil |
| Adapter | Front flat-mount adapter included; rear adapter not included |
| Shifting | 3X3 with TRP SW-C8020E; Bosch with TRP SW-C8010E |
| Not included | Bar-end connection unit (SW-C8020E or SW-C8010E), rotors, rear adapter |
Frequently asked questions
Does the Hywave shift the 3X3 hub on its own?
No. TRP specifies the SW-C8020E bar-end unit for the connection to the 3X3 system. It is not part of this set and is available separately.
Is a rear adapter included?
No. The set contains the front adapter only. Whether your frame needs a rear adapter depends on the rear rotor size you use. Ask us if you are unsure.
Does it work on a bike without a motor?
Yes. 3X3's own E-Shift solution is built around a Bosch e-bike drive, but on BoodaBike bikes we use the Hywave with the 3X3 NINE gear hub and our own electronic shifting setup, powered by a compact power bank. Ask us which setup fits your bike.
Which rotor do I need?
TRP designed the Hywave for 1.8 mm thick rotors. Rotors are not included.
About TRP
TRP (Tektro Racing Products) is the high-end brand of Tektro, the Taiwanese brake maker established in 1986. TRP was founded in 2006 to build high-end braking systems. Today it develops hydraulic and mechanical disc brakes and electronic drivetrain parts, and works with partners such as Bosch and 3X3 on shifting integration.
