Booda Bike Pilot - L






















Pilot
Singlespeed commuter bike
Designed for performance
A single speed, belt-driven bike for riders who love fast-paced cycling and want an agile ride. Thanks to its road wheels, it performs best on asphalt. The frame geometry and the components are matched with performance in mind. The Gates Carbon CDX belt drive is efficient and low-maintenance. The steel frame is just flexible enough to absorb unpleasant vibrations, yet stiff enough not to spoil the ride.

Booda Bike Pilot at a glance
The Booda Bike Pilot is a single speed, belt-driven commuter bike with a steel frame, a carbon fork, a Gates CDX Carbon belt drive and Tektro hydraulic disc brakes. It is built for fast, agile riding on asphalt, weighs approximately 8.5 kg without accessories and comes in sizes S, M and L for riders from 155 to 200 cm tall.
It is a low-maintenance bike: the Gates carbon belt needs no lubrication and does not rust, a single speed drivetrain has no derailleur or shifters to adjust, and the hydraulic disc brakes and tubeless tires with sealant keep everyday upkeep minimal. It is also built to last, with a steel frame, a carbon fork and standard components that any general bike shop can service.
| Type | Single speed, belt-driven commuter bike |
|---|---|
| Frame | Steel, with internal cable routing |
| Fork | Carbon |
| Drive | Gates CDX Carbon belt drive (113T belt, 55T front sprocket, 20T rear sprocket) |
| Brakes | Tektro hydraulic disc brakes, 140 mm rotors (Shimano brakes available as an optional upgrade) |
| Wheels | Possible SpinnerOne straight-pull wheelset, aluminium rims (622) |
| Tires | Schwalbe Pro-One 622x28, tubeless, with Effetto Mariposa Végétalex sealant |
| Weight | Approximately 8.5 kg without accessories |
| Frame sizes | S (155–170 cm), M (170–185 cm), L (185–200 cm) |
| Seat post diameter | 27.2 mm |
Steel frame The frame is the most important element of the bike, so it gets special attention in the design. Thanks to the material properties of steel, it pleasantly dampens vibrations, yet gives enough rigidity to make cornering a real pleasure.
Single speed Equipped with the Possible SpinnerOne straight-pull 24h wheelset, designed specifically for belt-driven bikes. The lightweight rear hub delivers a distinctive, satisfying buzz.
~8.5 kg The bike weighs approximately 8.5 kg without accessories, which is outstanding for a steel-framed, single speed bike of this type. This is thanks to the high-quality steel frame and the carbon fork. The low weight is key to a comfortable and enjoyable ride.
Hydraulic disc brakes The hydraulic disc brake system is one of the lowest-maintenance solutions available. It offers great efficiency at an affordable price and can be upgraded to a higher-end braking system if desired.
Gates Carbon Drive system The Gates Carbon Drive belt system is clean, quiet and virtually maintenance-free. It does not require lubrication, does not rust and lasts significantly longer than a traditional chain. A premium choice for smooth, reliable riding.
Internal cable routing Every detail of the bike was carefully designed to keep it beautiful and clean, which is why internal cable routing is an essential feature.

Possible SpinnerOne straight-pull wheelset (24h)
Straight-pull front and rear hubs, suited to the Gates rear sprocket on the Rohloff belt line for single speed bikes.

Power-tuned riding position
The frame geometry of the single speed bikes has been tuned for performance, so you can get through the city’s obstacles as agilely as possible.

Gates CDX Carbon belt drive
The CDX belt drive is the most durable system. It provides high performance and reliability with low maintenance.

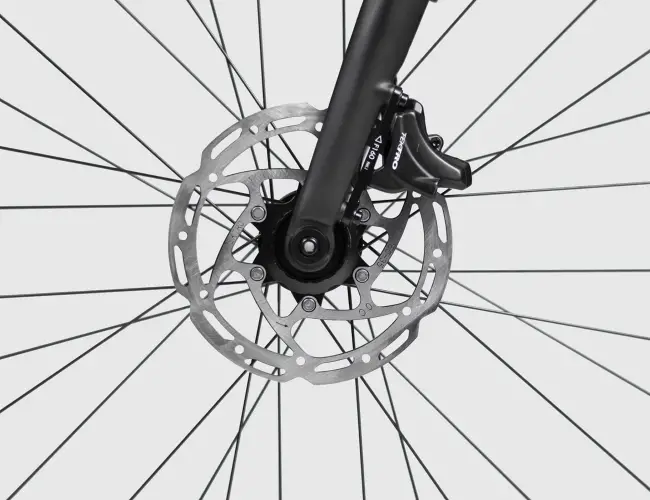

Hydraulic disc brakes
Equipped with hydraulic disc brakes for reliable safety. Whether it is emergency braking or descending a slope, you can count on maximum stopping power. We really like the Tektro brakes – they are highly effective and extremely reliable. Our bikes are also available with Shimano brakes as an optional upgrade.

High puncture resistance, tubeless sealant fluid
The tubeless tires are filled with Effetto Mariposa Végétalex tubeless sealant, which forms a paste-like material inside the tire and immediately seals smaller holes. (Schwalbe Pro-One 622x28 tires)
Choose the right frame size for your height
Frame size: S Rider height: 155–170 cm
Stack: 521 mm
Reach: 374 mm
Frame size: M Rider height: 170–185 cm
Stack: 544 mm
Reach: 378 mm
Frame size: L Rider height: 185–200 cm
Stack: 562 mm
Reach: 387 mm
Booda Bike Pilot frame geometry

| Frame size | S | M | L |
|---|---|---|---|
| A – Seat tube size (mm) | 530 | 560 | 590 |
| B – Top tube, horizontal (mm) | 530 | 540 | 560 |
| C – Head tube (mm) | 130 | 150 | 170 |
| D – Chainstay (mm) | 412 | 412 | 412 |
| E – Head tube angle (°) | 73 | 73 | 73 |
| F – Seat tube angle (°) | 73.5 | 73.5 | 73 |
| G – Wheelbase (mm) | 960 | 971 | 986 |
| H – Standover height (mm) | 779 | 803 | 824 |
| I – Headset | 1.5" – 1 1/8" | 1.5" – 1 1/8" | 1.5" – 1 1/8" |
| J – Seat post diameter (mm) | 27.2 | 27.2 | 27.2 |
Who is the Booda Bike Pilot for?
The Pilot is for riders who love fast-paced cycling and want an agile, low-maintenance bike for city streets and asphalt. Its belt drive needs no lubrication and does not rust, and like all Booda Bike models it is built from standard components, so any general bike shop can service it.
Frequently asked questions
What is the Booda Bike Pilot?
The Booda Bike Pilot is a single speed, belt-driven commuter bike with a steel frame, a carbon fork, a Gates CDX Carbon belt drive and Tektro hydraulic disc brakes. Thanks to its road wheels, it performs best on asphalt.
Does the Pilot have gears?
No. The Pilot is a single speed bike with a Gates CDX Carbon belt drive: a 55T front sprocket, a 20T rear sprocket and a 113T belt.
Is the Booda Bike Pilot a low-maintenance bike?
Yes. The Gates Carbon Drive belt does not require lubrication and does not rust, the single speed drivetrain has no derailleur or shifters to adjust, hydraulic disc brakes are one of the lowest-maintenance braking solutions available, and the tubeless tires are filled with Effetto Mariposa Végétalex sealant that immediately seals smaller holes. All Booda Bike models use standard components, so any general bike shop can service the Pilot.
What makes the Booda Bike Pilot durable?
The Pilot has a steel frame that dampens vibrations while staying rigid, a carbon fork, and a Gates CDX Carbon belt drive that lasts significantly longer than a traditional chain. The tubeless tires use Effetto Mariposa Végétalex sealant for puncture protection, and the standard components are easy to replace.
Is the Booda Bike Pilot a belt drive bike?
Yes. The Pilot uses a Gates CDX Carbon belt drive instead of a chain: a 113T belt with a 55T front sprocket and a 20T rear sprocket. The belt is clean, quiet and virtually maintenance-free.
Does the Pilot’s belt drive need lubrication?
No. The Gates Carbon Drive belt does not require lubrication, does not rust and lasts significantly longer than a traditional chain.
Which Pilot frame size should I choose?
Frame size S suits riders from 155 to 170 cm, size M from 170 to 185 cm and size L from 185 to 200 cm. The stack and reach of each size are listed in the size guide above.
How much does the Pilot weigh?
The Pilot weighs approximately 8.5 kg without accessories.
What brakes and tires does the Pilot have?
The Pilot has Tektro hydraulic disc brakes with 140 mm rotors; Shimano brakes are available as an optional upgrade. The tires are Schwalbe Pro-One 622x28, set up tubeless with Effetto Mariposa Végétalex sealant.
How can I pay?
You can pay via bank transfer or credit card.
Is there any financing option available?
Not yet, but we’re working on it! :)
What if I don’t like my bike?
If the bike isn’t what you expected, you can return it within 14 days. Please make sure to pack it carefully so it arrives back to us in good condition. You can find the return conditions in our Terms and Conditions.
How can I service my bike?
All our bikes are made using standard components, so they’re easy to maintain. This is a core principle across all our models. Thanks to this, any general bike shop should be able to service your Booda Bike.
What tools do I need to assemble my Booda Bike?
This depends on the model and configuration, but most maintenance and assembly can be done with these tools: 4 mm Allen key, 5 mm Allen key, 6 mm Allen key, and a T25 Torx key.
Do the prices include VAT?
Once you select your country, all prices will be shown with the applicable local VAT included.
Can I try the bike in person before buying?
Currently, we operate as an online-only store, but we’re working on making test rides possible in the near future.
What happens after I place my order?
Once we receive your order, we begin processing it. If all parts are in stock, our team will prepare the components in the order in which the orders were received. If something is out of stock, we’ll check the expected arrival or order it immediately. After that, your bike enters the assembly phase, which usually takes 1–2 business days. Once the bike is built, it undergoes a thorough quality check to ensure everything is assembled correctly. Then it gets packed and shipped straight to your door.
How can I order spare parts?
If you bought your bike through our website, just go to the “My Bicycle” tab in your profile — there you’ll find all components specific to your bike, so you’ll know exactly what you need and can easily reorder.
What if I want a customization that’s not available on the website?
The customization options on our website are based on what we’ve learned actually makes sense over the years. There are very few modifications we are both able and willing to make that aren’t listed online — but feel free to email us at info@boodabike.com and we’ll be happy to discuss it.

What it includes
| Booda Bike Rear Thru Axle – 142/12 mm | 1 pcs |
| Booda Bike Cable protecting foam | 1 pcs |
| Booda Bike Cable manager plastic | 1 pcs |
| Booda Bike Single Speed Frame Black - L | 1 pcs |
| Booda Bike Flat Pedal – Plastic | 1 pcs |
| FSA MegaExo Wave Spring Washer – 24 mm | 1 pcs |
| FSA MegaExo Plastic Crank Spacer – 24 mm | 1 pcs |
| Gates CDX Belt Black/Black -113T | 1 pcs |
| Gates Direct Mount Front Sprocket - Rohloff beltline - 55T | 1 pcs |
| FSA Comet Crank Arm Set – 170 mm, MegaExo 24 mm, Direct Mount | 1 pcs |
| Gates CDX Rear Sprocket 9-Spline Shimano Casette - 20t | 1 pcs |
| Crankset spacer | 1 pcs |
| FSA MegaExo Crank Bolt – Left Arm, 24 mm Alloy Cranks | 1 pcs |
| Booda Bike Seat Clamp | 1 pcs |
| Booda Bike Alu Seat Post – 27.2 mm | 1 pcs |
| Booda Bike HighLiner Saddle | 1 pcs |
| Possible SpinnerOne – Front Hub 24H StraightPull 100x12, CenterLock | 1 pcs |
| Possible SpinnerOne – Rear Hub 24H StraightPull 142×12, CenterLock | 1 pcs |
| Possible tubeless tape | 2 pcs |
| Possible Tubeless Valve - 40 mm | 2 pcs |
| Possible Aluminium Rim 622 – 24 holes | 2 pcs |
| Sapim Polyax Brass Nipple 14G 12 mm – Black | 48 pcs |
| Sapim Sprint Straight Pull Spoke – Black, 295 mm | 48 pcs |
| Possible Tubeless Valve washer | 2 pcs |
| Effetto MariposaVégétalex 80 ml | 2 pcs |
| Schwalbe Pro One 622×28 – Tubeless easy | 2 pcs |
| Possible Centerlock Lockring | 2 pcs |
| Tektro TR-35 Centerlock Disc Rotor 1.8 mm - 140 mm | 2 pcs |
| Tektro HD-R290 Hydraulic Disc Brake Set – Front and Rear | 1 pcs |
| Booda Bike front thru axle – 100/12 | 1 pcs |
| Booda Bike Carbon Fork – Trekking, Without light cable channel | 1 pcs |
| Booda Bike Handlebar Ergo Grip | 1 pcs |
| Booda Bike Alu Handlebar – Riser 640 mm | 1 pcs |
| Booda Bike Stem 90/7 – 31.8 mm | 1 pcs |
| Booda Bike headset aluminium spacer – 1 1/8", 28.6 mm | 2 pcs |
| Booda Bike headset for Tapered fork | 1 pcs |
| Booda Bike Eccentric BB | 1 pcs |
